Holo3 Benchmark Viewer

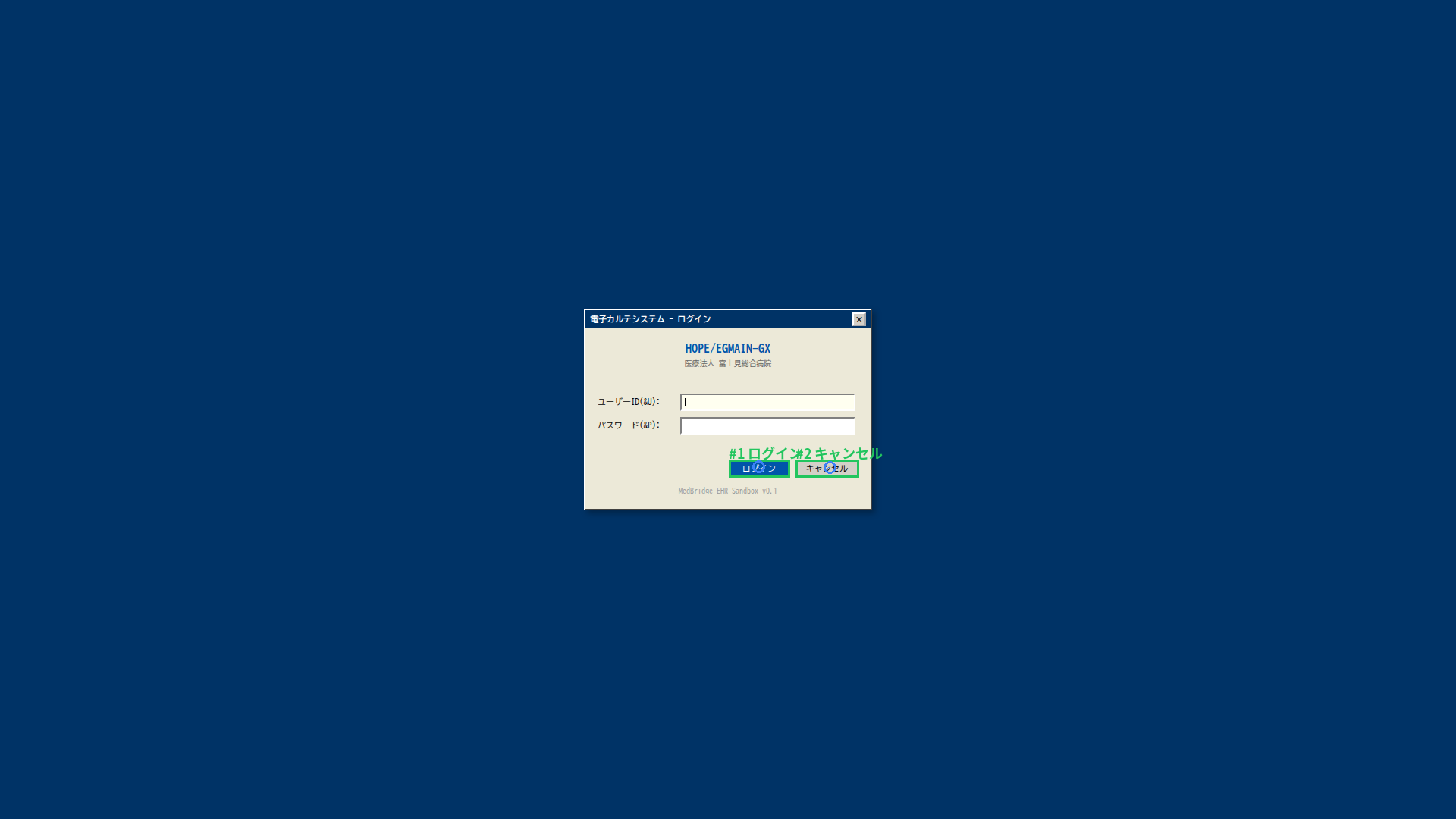

login (DOM: 2 elements)

#	Target	GT bbox	Pred	Result	Dist
#1	ログイン	[961, 606, 1041, 629]	(1000,615)	HIT	2.2px
#2	キャンセル	[1049, 606, 1132, 629]	(1094,616)	HIT	4.1px

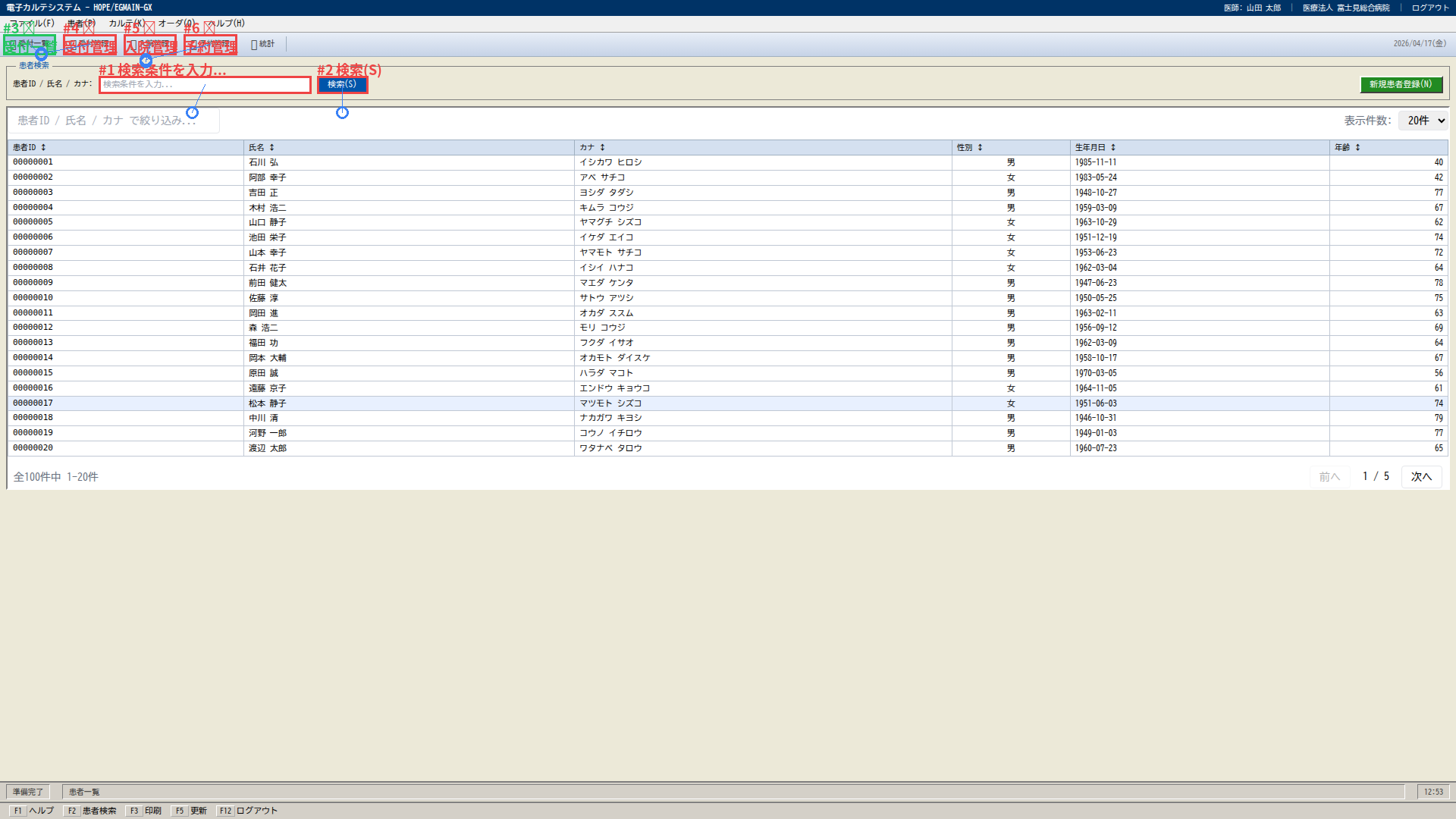

patient_list (DOM: 11 elements)

#	Target	GT bbox	Pred	Result	Dist
#1	検索条件を入力...	[130, 100, 410, 123]	(253,148)	MISS	40.7px
#2	検索(S)	[418, 100, 485, 123]	(451,148)	MISS	37.0px
#3	📋 受付一覧	[4, 45, 73, 72]	(54,72)	HIT	21.3px
#4	🏥 受付管理	[83, 45, 153, 72]	(54,70)	MISS	65.1px
#5	🛏 入院管理	[163, 45, 232, 72]	(192,81)	MISS	23.5px
#6	📅 予約管理	[242, 45, 312, 72]	(192,78)	MISS	87.3px

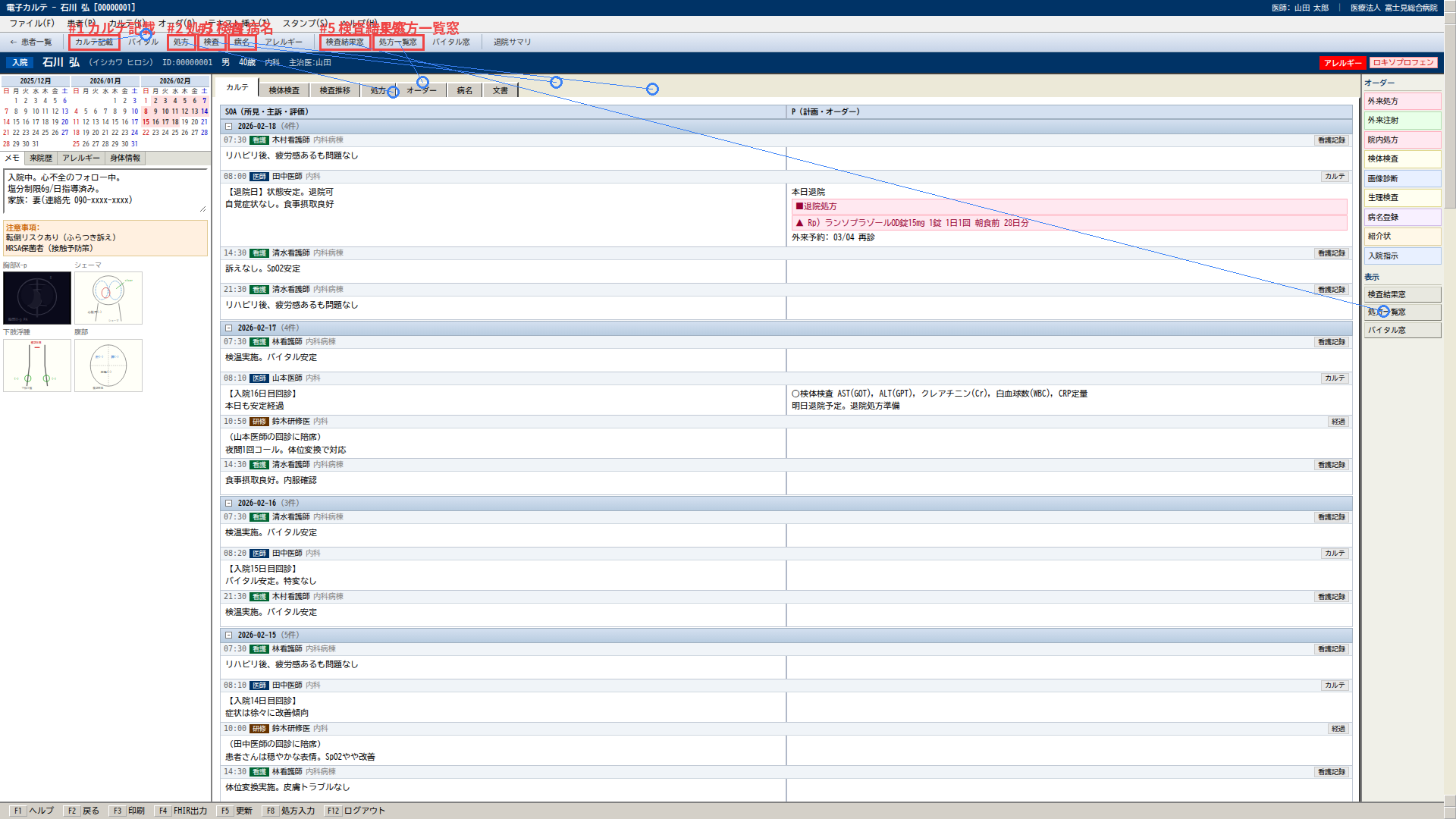

karte (DOM: 23 elements)

#	Target	GT bbox	Pred	Result	Dist
#1	カルテ記載	[90, 45, 158, 66]	(192,45)	MISS	68.7px
#2	処方	[220, 45, 258, 66]	(518,121)	MISS	286.7px
#3	検査	[260, 45, 298, 66]	(733,108)	MISS	457.1px
#4	病名	[300, 45, 338, 66]	(860,117)	MISS	544.5px
#5	検査結果窓	[421, 45, 489, 66]	(1824,410)	MISS	1414.3px
#6	処方一覧窓	[491, 45, 559, 66]	(557,108)	MISS	61.9px

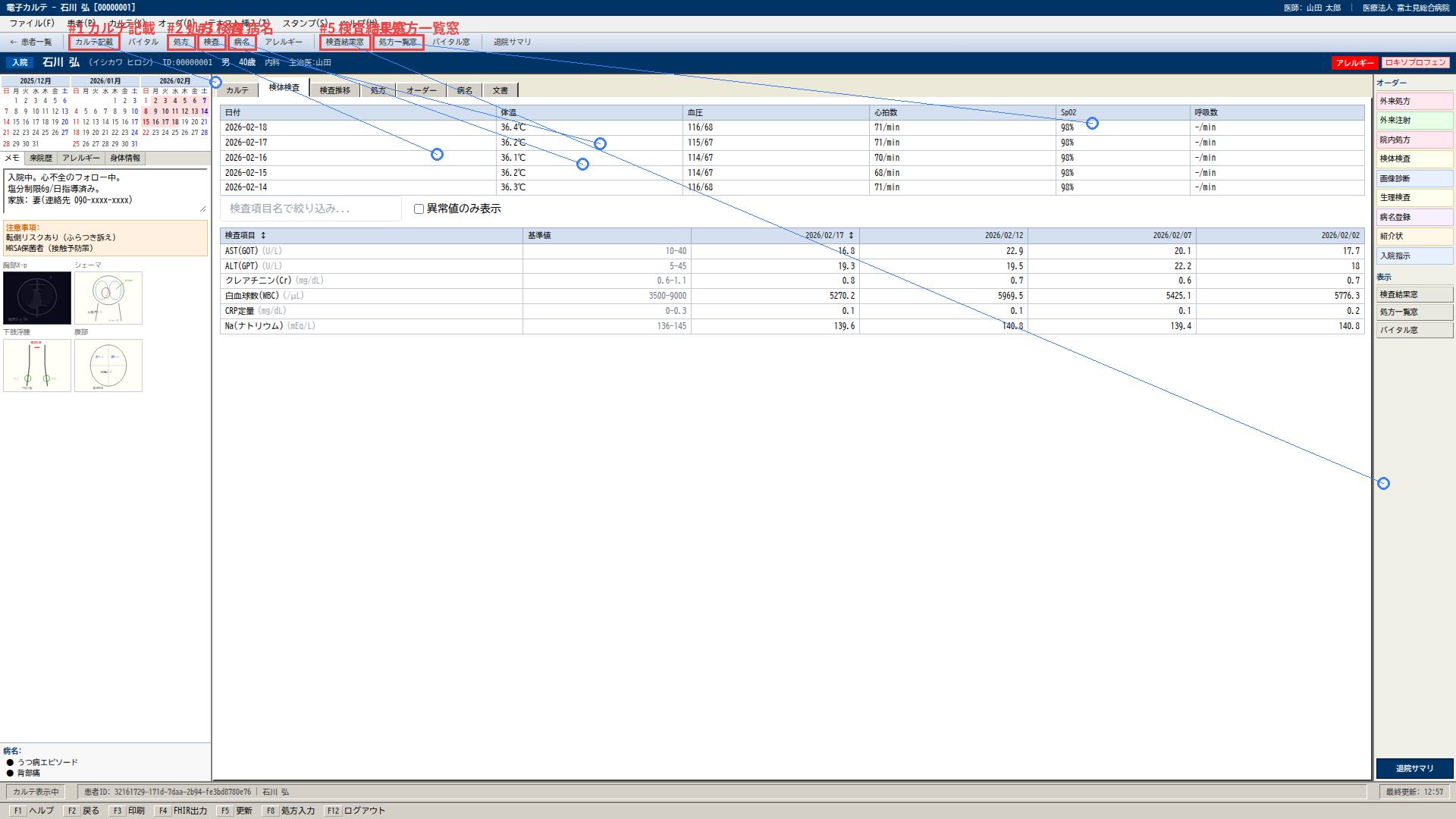

labs (DOM: 26 elements)

#	Target	GT bbox	Pred	Result	Dist
#1	カルテ記載	[90, 45, 158, 66]	(284,108)	MISS	168.5px
#2	処方	[220, 45, 258, 66]	(576,203)	MISS	368.1px
#3	検査	[260, 45, 298, 66]	(791,189)	MISS	529.2px
#4	病名	[300, 45, 338, 66]	(768,216)	MISS	477.0px
#5	検査結果窓	[421, 45, 489, 66]	(1824,637)	MISS	1487.6px
#6	処方一覧窓	[491, 45, 559, 66]	(1440,162)	MISS	921.2px

OCR [lab_results]: 6/6 (recall 1.00)

GT

[
  {
    "name": "AST(GOT)",
    "value": "16.8"
  },
  {
    "name": "ALT(GPT)",
    "value": "19.3"
  },
  {
    "name": "クレアチニン(Cr)",
    "value": "0.8"
  },
  {
    "name": "白血球数(WBC)",
    "value": "5270.2"
  },
  {
    "name": "CRP定量",
    "value": "0.1"
  },
  {
    "name": "Na(ナトリウム)",
    "value": "139.6"
  }
]

Predicted

[
  {
    "name": "AST(GOT)",
    "value": "16.8",
    "unit": "U/L"
  },
  {
    "name": "ALT(GPT)",
    "value": "19.3",
    "unit": "U/L"
  },
  {
    "name": "クレアチニン(Cr)",
    "value": "0.8",
    "unit": "mg/dL"
  },
  {
    "name": "白血球数(WBC)",
    "value": "5270.2",
    "unit": "/μL"
  },
  {
    "name": "CRP定量",
    "value": "0.1",
    "unit": "mg/dL"
  },
  {
    "name": "Na(ナトリウム)",
    "value": "139.6",
    "unit": "mEq/L"
  }
]

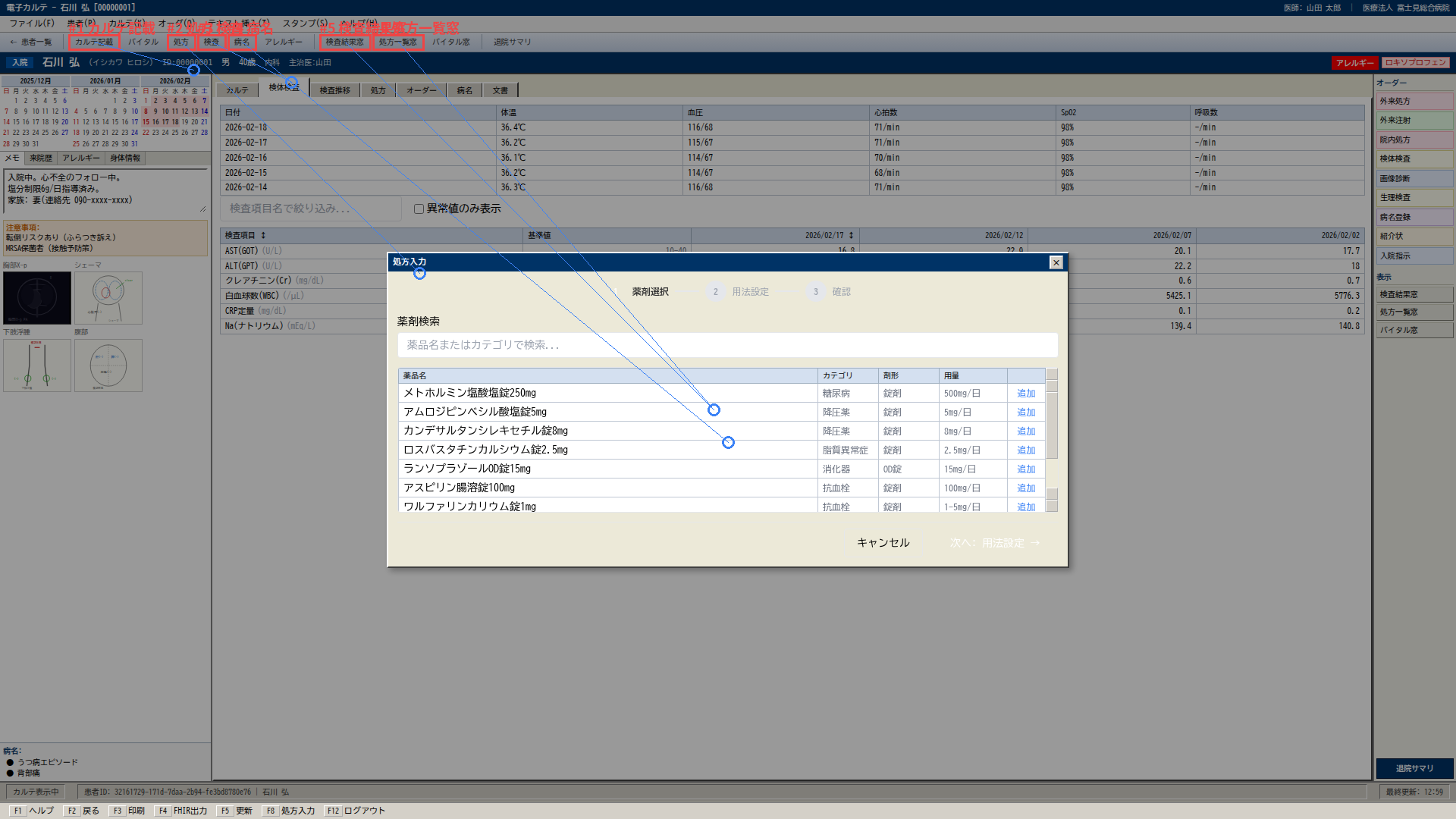

meds (DOM: 30 elements)

#	Target	GT bbox	Pred	Result	Dist
#1	カルテ記載	[90, 45, 158, 66]	(255,92)	MISS	136.1px
#2	処方	[220, 45, 258, 66]	(553,360)	MISS	437.7px
#3	検査	[260, 45, 298, 66]	(384,108)	MISS	117.6px
#4	病名	[300, 45, 338, 66]	(960,583)	MISS	830.5px
#5	検査結果窓	[421, 45, 489, 66]	(941,540)	MISS	686.6px
#6	処方一覧窓	[491, 45, 559, 66]	(941,540)	MISS	639.0px

OCR [medications]: 1/1 (recall 1.00)

GT

[
  {
    "name": "ランソプラゾールOD錠15mg",
    "dosage": "1錠 1日1回 朝食前"
  }
]

Predicted

[
  {
    "name": "メトホルミン塩酸塩錠250mg",
    "dosage": "500mg/日"
  },
  {
    "name": "アムロジピンベシル酸塩錠5mg",
    "dosage": "5mg/日"
  },
  {
    "name": "カンデサルタンシレキセチル錠8mg",
    "dosage": "8mg/日"
  },
  {
    "name": "ロスバスタチンカルシウム錠2.5mg",
    "dosage": "2.5mg/日"
  },
  {
    "name": "ランソプラゾールOD錠15mg",
    "dosage": "15mg/日"
  },
  {
    "name": "アスピリン腸溶錠100mg",
    "dosage": "100mg/日"
  },
  {
    "name": "ワルファリンカリウム錠1mg",
    "dosage": "1-5mg/日"
  }
]

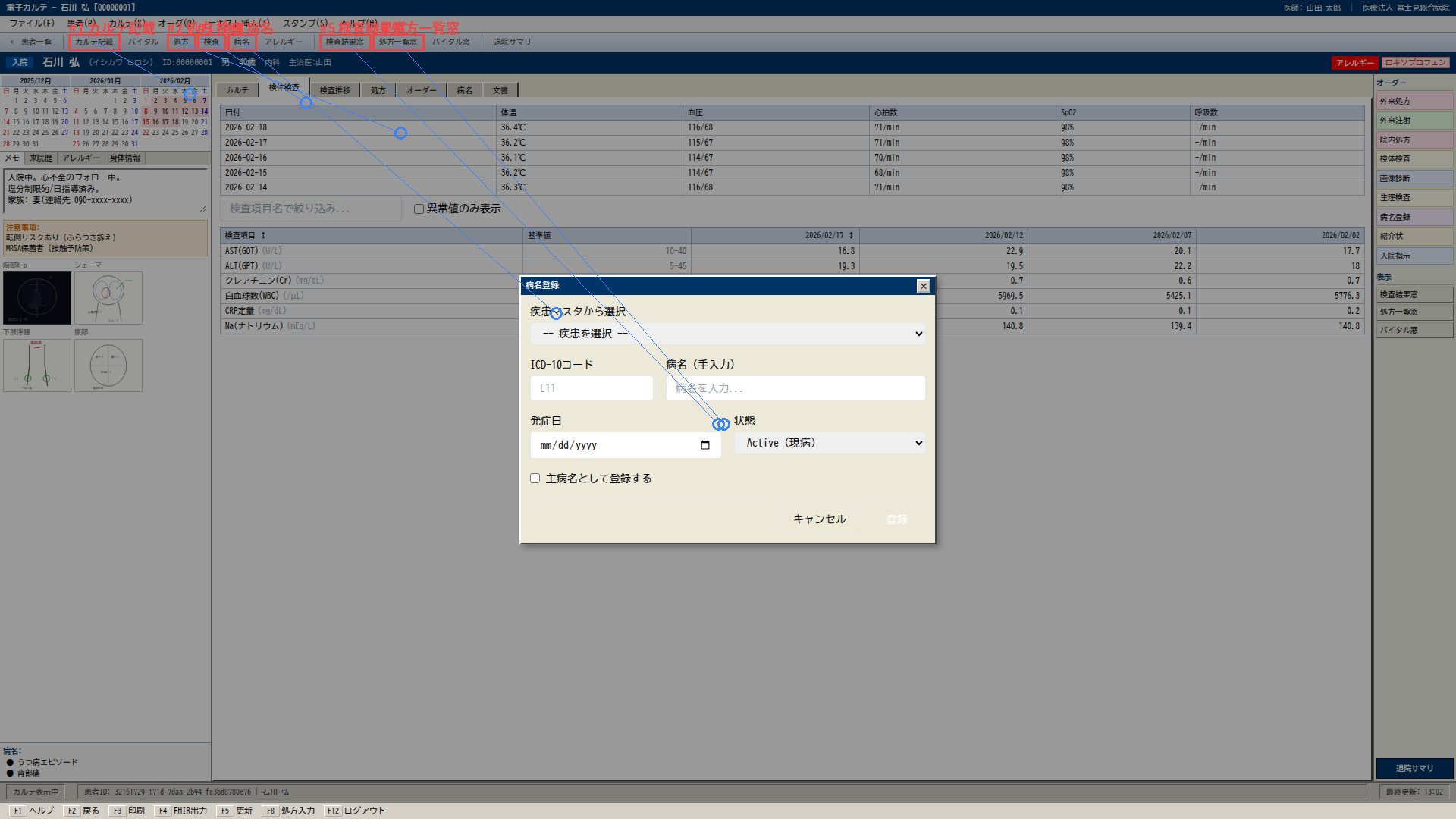

diagnoses (DOM: 32 elements)

#	Target	GT bbox	Pred	Result	Dist
#1	カルテ記載	[90, 45, 158, 66]	(250,124)	MISS	143.7px
#2	処方	[220, 45, 258, 66]	(528,175)	MISS	312.9px
#3	検査	[260, 45, 298, 66]	(403,135)	MISS	147.6px
#4	病名	[300, 45, 338, 66]	(733,413)	MISS	547.3px
#5	検査結果窓	[421, 45, 489, 66]	(947,559)	MISS	704.3px
#6	処方一覧窓	[491, 45, 559, 66]	(954,559)	MISS	661.9px

OCR [diagnoses]: 2/2 (recall 1.00)

GT

[
  {
    "name": "うつ病エピソード",
    "icd10": "F32"
  },
  {
    "name": "背部痛",
    "icd10": "M54"
  }
]

Predicted

[
  {
    "name": "うつ病エピソード",
    "icd10": "F32"
  },
  {
    "name": "背部痛",
    "icd10": "M54.5"
  }
]
